New 2024 Winnebago Vista 34R

Motor Home Class A

Stock #240012

Pasco, WA

1 of 19

+19

Sale Price: $164,990
MSRP: $250,875
Save: $85,885

Sleeps 5
2 Slides
Bunk Over Cab

U Shaped Dinette

35ft Long
Brown

See All Specs

Specifications

Sleeps	5	Slides	2
Length	35 ft 5 in	Ext Width	8 ft 6 in
Ext Height	12 ft 4 in	Int Height	6 ft 10 in
Interior Color	Brown	Hitch Weight	5000 lbs
GVWR	22000 lbs	Fresh Water Capacity	74 gals
Grey Water Capacity	42 gals	Black Water Capacity	42 gals
Tire Size	19.5"	Furnace BTU	35000 btu
Fuel Type	Gasoline	Miles	1459
Engine	7.3L PFI V8	Chassis	Ford F53
Fuel Capacity	80 gals	Wheelbase	228 in
Available Beds	King Murphy	Refrigerator Type	Large 2 Door Stainless Steel w/Freezer
Refrigerator Size	10 cu ft	Cooktop Burners	3
Shower Size	34" x 34"	Number of Awnings	1
Axle Weight Front	8000 lbs	Axle Weight Rear	15000 lbs
LP Tank Capacity	76.14 lbs	Water Heater Capacity	6 gal
Water Heater Type	LP with Electronic Ignition	AC BTU	27000 btu
Basement Storage	159 cu. ft.	TV Info	LR 39" LCD HDTV, Ext. 32" HDTV
Awning Info	22' Power w/ LED Lighting	Gross Combined Weight	26000 lbs
Shower Type	Radius	Electrical Service	30 amp
VIN	1F66F5DN1P0A06821

Description

Winnebago Vista Class A gas motorhome 34R highlights:

U-Shaped Dinette
Sofa Bed
Rear Private Bedroom
Dual Entry Bathroom
Full Wall Slide

This motorhome offers versatility! The rear private bedroom has a 72"
x 75" king Murphy bed that folds down and when it's stored away there is a dinette workstation for you to get some work done in comfort, plus wardrobes on either side of a dresser and an entrance into the dual entry bathroom. Across from the bathroom is a large pantry with exterior storage access for your convenience. The chef will have an easy time preparing delicious meals in the fully equipped kitchen, and they can be enjoyed at the 42" x 95" U-shaped dinette slide. The 40" x 66" sofa bed is not only great for relaxing while watching a movie on the 39" LCD HDTV, but also for transforming into an extra sleeping space. If you need more sleeping space, you can also add the optional 50" x 80" powered StudioLoft bed above the cab!

Optional Equipment Installed On This Unit:2.0KW Inverter, Theater Seating, Exterior Upgrade Package, Wifi Router/Signal Booster, Bedroom TV, Video camera System, 3 Burner Range w/ Oven, Residential Refrigerator, Solar Panel, Loft Bed, Sumo Suspension Package, Radio-Satellite SiriusXM

The Winnebago Vista Class A gas motorhome will expand your horizons and provide you a great traveling home on wheels! The Vista is powered by a 7.3L PFI V8 engine on a Ford F53 chassis with 5,000 lbs. of towing capacity which allows you to bring along one of your favorite toys. The adjustable swivel cab seats in front can slide and recline so you can be sure to have the perfect level of comfort in addition to entertainment with the 7" LCD color touch screen that is Sirius XM ready and Bluetooth compatible with Android Auto and Apple CarPlay. The powered blackout roller visor/shade on the front windshield provides extra privacy, and the passenger dash workstation with USB and 12-volt power port lets you get some work done while on the road.

Options:

Optional Equipment Installed On This Unit:2.0KW Inverter, Theater Seating, Exterior Upgrade Package, Wifi Router/Signal Booster, Bedroom TV, Video camera System, 3 Burner Range w/ Oven, Residential Refrigerator, Solar Panel, Loft Bed, Sumo Suspension Package, Radio-Satellite SiriusXM

Features

Standard Features (2024)

Chassis

Ford® F53 Chassis with Driver Confidence Package
7.3L PFI V8 engine, TorqShift™ 6-speed automatic transmission w/tow/haul, 210-amp. alternator
Electronic stability control
Hydraulic brakes w/ABS
Trailer hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight
7-pin trailer wiring
Stylized Aluminum wheels 22.5” (33K, 34R)
Stainless steel wheels 19.5” w/chrome covers (29V, 31B)
Automatic hydraulic leveling jacks
Rear valve stem extensions

Optional Equipment:

SumoSprings® suspension enhancement

Cab Conveniences

Radio/Rearview Monitor System 7.0" LCD color touch screen, Apple CarPlay®, Android Auto Sirius XM ready, rear color camera, Bluetooth® Versa driver's seat swivels easily around steering wheel, w/two-position armrest, fixed lumbar support, and multi-adjustable slide/recline
Passenger seat swivels, w/two-position armrest, fixed lumbar support, and multi-adjustable slide/recline
3-point seat belts
Removable utility table
Chassis/house battery radio power switch
Power steering w/tilt wheel and telescoping wheel
Rearview Power steering w/and power adjust
Large panoramic windshield
Powered blackout roller visor/shade (front windshield)
Blackout roller shade (driver and passenger windows)
Driver/passenger snap on vinyl closeout covers
Cruise control
Map light
Dash workstation w/USB and 12-volt power port
Motor cover w/integrated snack tray and cupholder
Instrument panel

Optional Equipment

Video camera system w/side view activation from turn signal

Electrical System

AC/DC load center, 50-amp. converter/charger (33K, 34R)
5,500-watt Cummins Onan MicroQuiet gas generator (33K, 34R)
AC/DC load center, 30-amp. converter/charger (29V, 31B)
4,000-watt Cummins Onan MicroQuiet gas generator (29V, 31B)
2 deep-cycle Marine/RV Group 31 batteries
Battery disconnect system (coach)
Automatic dual-battery charge control
Auxiliary start circuit
AC duplex receptacle
Cable TV input
Exterior antenna jack
DC receptacles
2,000-watt inverter w/remote panel
Solar panel/battery charger wiring prep with three-way, solar, plug-ready port located on roof and single port in exterior bay, for aftermarket installation, up to 460-watts

Optional Equipment

Solar panel battery charge system (Single 115W panel and 30 amp charge controller)
Winegard Air 360 Omnidirectional VHF/UFH/FM Antenna and Gateway 4G LTE Wi-Fi Router
Cooling Upgrade Package w/two 13,500 BTUs A/C, 50-amp. power cord, 5,500-watt Cummins Onan® MicroQuiet™ gas generator (29V, 31B)

Interior

39" LCD HDTV
Dinette Hi-Lo Table w/storage
Amplified digital TV antenna system
Satellite system ready
Blackout roller shades
Winnebago Control™ w/7" touchscreen monitor and available app
LED lights
Pleated curtain panels
Residential vinyl flooring throughout
Entrance assist handle
Sofa/bed
USB Chargers
Soft Vinyl Ceiling

Optional Equipment

Powered StudioLoft™ bed (w/ladder) 600 lb. weight capacity sleep size for 2, 50" x 80"
Theater Seating w/cupholders and USB charging ports

Galley

Corian® countertops
Corian backsplash with tile inlay
Large, 2-door 10.0 cu. ft. 12VDC stainless steel refrigerator/freezer
Microwave oven w/touch controls
3-burner recessed range top with black glass folding cover, backlit control knobs and stainless-steel control panel
Pantry
Stainless steel double sink w/single lever faucet and pullout sprayer
Powered ventilator ceiling fan

Optional Equipment

3-burner range with large oven

Bath

Half bathroom at mid-coach (33K)
Thermoform countertop
Flexible showerhead
Textured glass shower door
Skylight
Porcelain bowl toilet w/foot pedal
Powered roof ventilator fan
Towel rack mounted inside of door
Towel bar(s)
Towel ring(s)
Robe hook(s)
Tissue holder
Medicine cabinet
Mirror

Bedroom

King bed w/foam mattress and storage below
Headboard
Powered ventilator fan
Room divider sliding door

Optional Equipment

32" HDTV

Exterior

Premium high-gloss sidewall skin
Protective Mask
1-Piece fiberglass roof
Automatic entrance door steps and screen door
Powered patio awning w/LED lighting/dual pitch controls
Frameless, tinted windows
Exterior H & C shower located in utility
Entertainment center 39" HDTV w/remote and speakers (29V)
Entertainment center 32" HDTV w/remote and speakers (33K, 31B, 34R)
Front mud flaps
Rearview mirrors w/defrost & power adjust
Side-hinged storage doors w/paddle latch
LED porch light w/interior switch
Lighted storage compartments
Ladder
Entry assist handle
PetPal leash tie down
Tailgate Package refrigerator, storage cabinet, LED lights, LP Quick-Connect, stainless steel sink, single lever faucet, wall mounted bottle opener, paper towel holder (29V, 31B)

Optional Equipment

High-Rez Exterior Upgrade Package premium full-body paint, LED lamps/fog lamps, chrome side mirrors, grille inlay applique

Heating & Cooling System

15,000 BTU A/C (29V, 31B)
Two 13,500 BTUs A/Cs (33K, 34R)
35,000 BTU low-profile furnace

Optional Equipment

Cooling Upgrade Package w/two 13,500 BTUs A/C, 50-amp. power cord, 5,500-watt Cummins Onan® MicroQuiet™ gas generator (29V, 31B)

Plumbing System

Service Center colored labels, pressurized city water hookup w/diverter valve, drainage valves, 10' sewer hose
6-gallon LP water heater w/electronic ignition
Heated holding tank compartment
Permanent-mount LP tank w/gauge
On-demand water pump
TrueLevel™ holding tank monitoring system
Winterization Package water heater bypass valve and siphon tube
LP quick connect (patio side)
Water system filtration package
Holding tank flushing system (black tank only)

Safety

Child seat tether anchor (forward facing dinette seat)
LP, smoke, and carbon monoxide detectors
Fire extinguisher
Ground fault interrupter
High-mount brake lamp

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Helpful Sales!
Chris's was great to work with, couldn't ask for a more helpful salesperson.

Charles
Excited to begin our motorhome adventures!
Jason Rowland was our salesman & was absolutely awesome. What started as a dream became reality. Jason is no pressure, friendly, open, honest & even transported us from the rental car location to the dealership. He scheduled our walk thru which I have on video & we stayed all night at their overnight

WndyW00
Knowledgeable Staff!
Huge selection and fair prices with nice, knowledgeable staff.

Gregory

We are here to help, call us at
888-343-8800 or Contact Us

We are here to help!

888-343-8800
Contact Us
Contact Sales

Broadmoor RV SuperStore is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @888-343-8800 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

New 2024 Winnebago Vista 34R

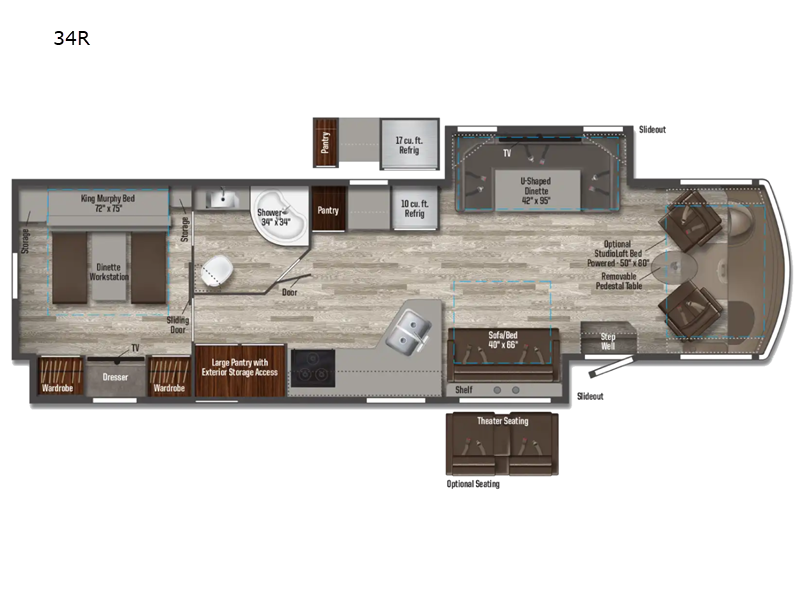

34R Floorplan
